Tracer Arm Tracer Arm

Functions

Position Detection Function

ESTIC's fastening tools have a sensor that detects its positioning to ensure pokayoke. Our systems indicate tightening order and position to prevent various errors such as non-tightening, incorrect tightening position or procedures. The position detection function can also be used in place of a torque wrench.

Direct Teaching Function

The tightening position and sequence can be easily set by directly moving the tracer arm. No complicated programming tasks are necessary.

Trace job

It is equipped with a trace job function that can construct a series of tightening operation sequences by specifying the tightening operation channel/tightening possible position by parameter setting without requiring control from an external control device (PLC, etc.).

Network

Communication Technology

Tracer arm is equipped with a platform that can easily communicate and integrate with host systems through open protocols, etc. Production-efficiency and quality-improvement can be realized by configuring assembly lines mainly for tracer arm.

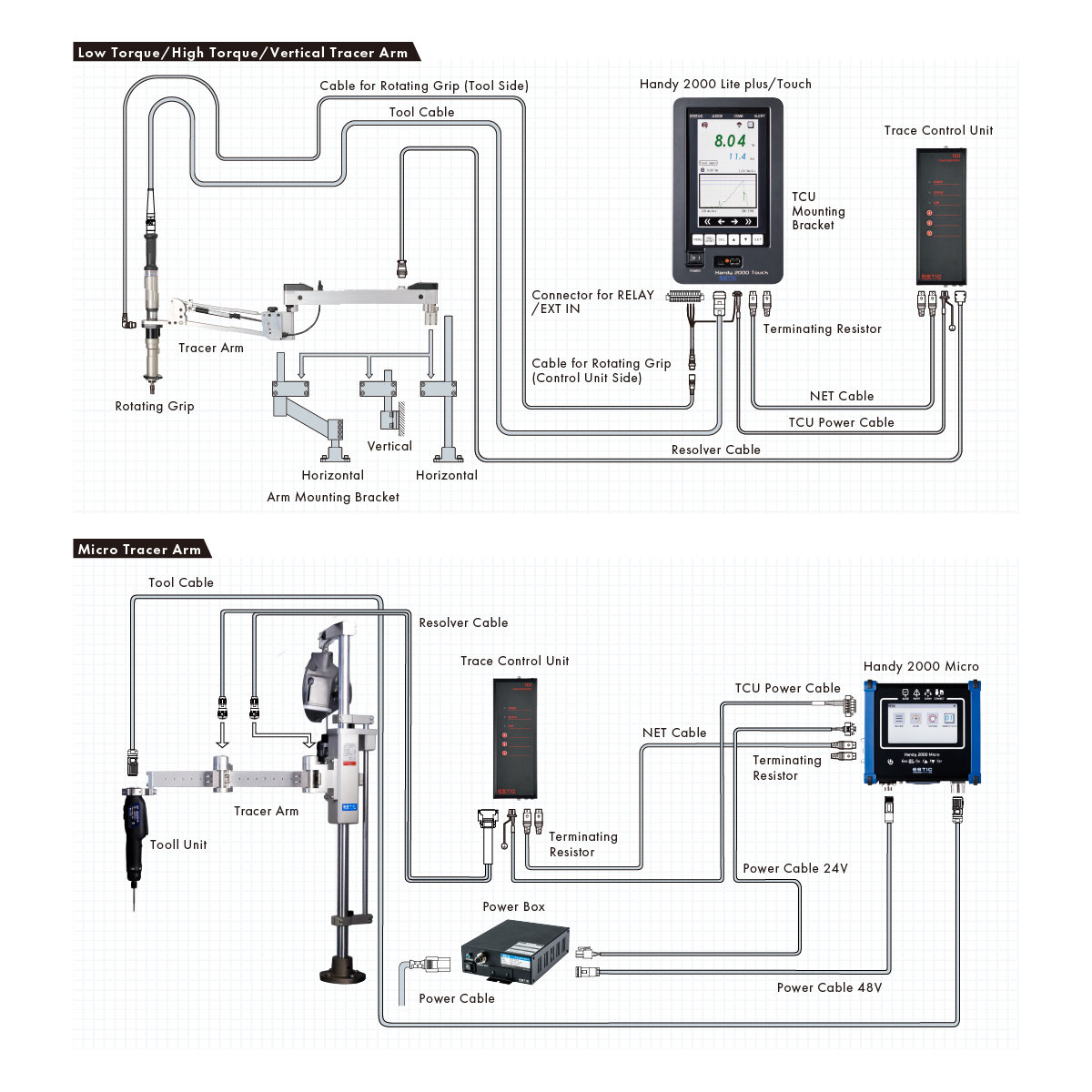

Trace Control Unit EH2-TCU2

This unit transmits the position data of the tracer arm to Handy 2000 controllers. Can be used in common for various tracer arms. Control inputs and outputs that can be freely assigned can also be expanded.

■Model :EH2-TCU2-N
 Control input/output: PIO (IN/OUT) 6 points each (PNP/NPN compatible)
■Model :EH2-TCU2-E
 Control input/output: PIO (IN/OUT) 6 points each (PNP/NPN compatible)
       EXTPIO(IN/OUT) 24 points for each. (PNP/NPN compatible)
■Common specifications
 Display and operation: 3 indicator lamps and 3 push buttons
 Weight:0.9 kg
